Right now, most 1973-1982 Corvettes are in that middle ground between ultra-collectible and new. They’re still Corvettes, which makes them desirable and prestigious, yet they haven’t reached the value and collectability of the earlier cars. That’s not a bad thing, because these mid-models are still affordable as used cars, a fact that explains why you see so many on the road, with many still utilized as everyday drivers. Using the cars also uses them up, but thanks to the proliferation of parts on the market today, it’s easy to keep these older Corvettes in good street-shape.Plus, they’re actually fairly easy to work on, which makes them a favorite for backyard mechanics.

The 4-wheel disc brakes on these Corvettes, which actually incorporate a span of 1965-82 models, are frequent maintenance items, especially the original-style calipers that can stick, squeal, or just plain wear out. Zip Corvette Parts has Brake Caliper Kits – you can replace the calipers in an afternoon with regular hand tools and some mechanical knowledge. The kit comes with everything needed to replace the original calipers – four stainless-sleeved calipers with OEM replacement pads, DOT-approved hoses, trailing arm brake lines and brake pad installation pins. You even get a quart of heavy-duty, DOT 3 brake fluid. Upgrades are also available; like o-ring calipers, stainless braided hoses, semi-metallic or carbon-metallic pads and silicone brake fluid. Other braking components, like rotors and master cylinders, can also be obtained from Zip.

The calipers are remanufactured with 4-micron finished stainless steel sleeves to resist corrosion. Supplied painted with a long-lasting epoxy paint, the calipers come fully assembled with new pistons, springs, seals, dust boots, o-rings and stainless steel bleeders. Contact Zip for pricing and core-charge information.

CorvetteMagazine.com thought a 1974 Corvette was the perfect candidate for the brake caliper overhaul. Although equipped previously with slotted  rotors, the older OEM calipers were in much need of replacement, as evidenced by the groaning and squealing noises whenever the brakes were applied.

Click on the images for expanded views – it’s much easier on the eyes.
corvette_disc_brake_overhaul_01

Step 1

01: Squeaks, squeals and other brake noise generally comes from metal-to-metal contact. On our brake pads, you could see where the back of the pads were actually scuffed due to contact with the caliper pistons.
corvette_disc_brake_overhaul_02

Step 2

02: Brush a light film of high quality grease or lubricate on the sides of the calipers, where the pads meet the edges. Not too thick, as any buildup will attract “all kinds of crud.”
corvette_disc_brake_overhaul_03

Step 3

03: To eliminate brake noise, lubricate all moving parts. Here, he’s applying a light film of grease to the pad retaining pins.
corvette_disc_brake_overhaul_04

Step 4

04: With the caliper assembly lubricated, the new calipers can be reassembled in preparation for installation.
corvette_disc_brake_overhaul_05

Step 5

05: Zip supplies new DOT-approved brake lines with their Stainless Steel Brake Kit. You should never install a brake line without the DOT markings. Be sure to use the copper washer, and don’t tighten completely until after the caliper is installed.
corvette_disc_brake_overhaul_06

Step 6

06: To prevent the steady drip, drip, drip of brake fluid after disconnecting the old hoses, “Pinch” the old hose with vise grips. We’ll be replacing them anyway, so there’s no worry about damage
corvette_disc_brake_overhaul_07

Step 7

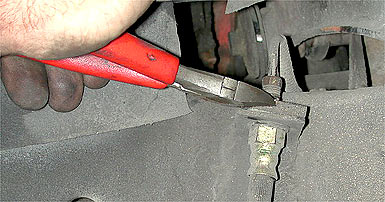

07: Don’t forget to remove this c-clip at the brake hose connection. New clips are supplied with the kit.
corvette_disc_brake_overhaul_08

Step 8

08: Always use two line wrenches when disconnecting the brake hoses.
corvette_disc_brake_overhaul_09

Step 9

09: With the hoses disconnected and the caliper mounting bolts removed, the old caliper can be slipped off the rotor. Notice that our project car was already equipped with relatively new slotted rotors.
corvette_disc_brake_overhaul_10

Step 10

10: With the new caliper in place on the rotor, install the new caliper bolts, as supplied with the kit.
corvette_disc_brake_overhaul_11

Step 11

11: Connect the new brake hose to the existing hard line and use the new c-clip in the kit to secure.
corvette_disc_brake_overhaul_12

Step 12

12: R and R at the rear is similar to the front. Again, notice how we pinch off the old brake hose before disconnecting.
corvette_disc_brake_overhaul_13

Step 13

13: Like the front, the new caliper simply slips into place over the rotor and is secured with new caliper bolts.
corvette_disc_brake_overhaul_14

Step 14

14: We upgraded to stainless line for the rear calipers. Slight bending may be required on cars with rear sway bars.
corvette_disc_brake_overhaul_15

Step 15

15: With all hoses in place, make sure they are tightened securely after installing the c-clips.
corvette_disc_brake_overhaul_16

Step 16

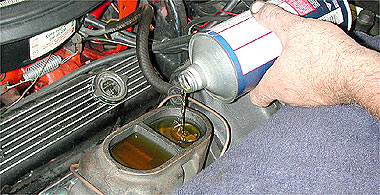

16: You’ll need to replace the brake fluid that leaked out of the lines before bleeding the system. Be sure to protect your exterior finish. Brake fluid is the best paint stripper in the world.
corvette_disc_brake_overhaul_17

Step 17

17: Finally, bleed the brake system until all air is purged, then test drive.
