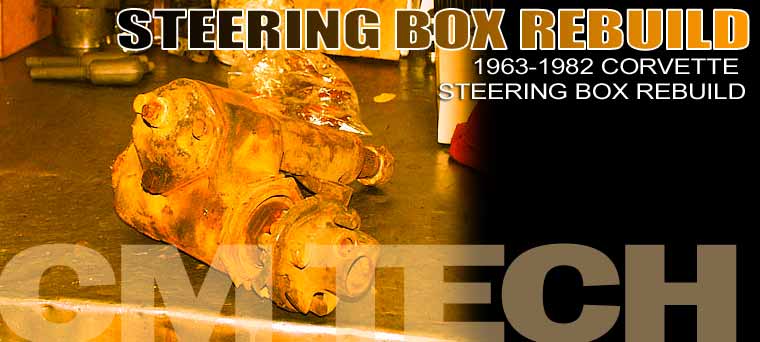

1963-1982 Corvette Steering Box Rebuild
Posted
September 27, 2012
by
Admin
in
C3 Steering
Overview
Section: C3 SteeringBottom Line
Sometimes, no matter how well you take care of your Corvette, there are certain items that just wear out. The steering box on your Corvette is definitely one of those pieces. Often the steering box lubricant NEVER gets changed – oil breakdown as well as water intrusion can cause a real mess inside permanently wearing [...]
Ratings are based on overall difficulty level of the procedure.
- Articles that receive fewer stars will require less mechanical ability, basic tools, shorter time and little or no additional help to complete.
- Articles that receive more stars are for more confident mechanics who have a larger collection of tools. These will most likely require additional help and take longer to complete.
Our Complete Rating System
Experience:
- 1 Star: No mechanical experience is necessary.
- 2 Stars: Very limited mechanical experience is required.
- 3 Stars: Mechanical experience is helpful but not necessary. Possibly a good first project for those with more confidence.
- 4 Stars: Mechanical experience is a big plus. These jobs are not recommended for first time DIY projects.
- 5 Stars: Mechanical experience is a must. These jobs are only for experienced mechanics and most should opt to have these professionally completed.
Tools Required
- 1 Star: Does not require any tools to complete the job.
- 2 Stars: Common tools required to complete the job.
- 3 Stars: Common tools required. More advanced tools might help complete the job easier.
- 4 Stars: Common tools, more advanced tools and possibly special tools are required to complete the job.
- 5 Stars: A professional tool collection with advanced and special tools are required to complete the job.
Completion Time
- 0-1 Star: Time spent to complete the job will not exceed 1-hour.
- 2 Stars: Time spent to complete the job will likely fall within 1-2 hours.
- 3 Stars: Time spent to complete the job will likely fall within 2-3 hours.
- 4 Stars: Time spent to complete the job will likely fall within 3-4 hours.
- 5 Stars: Time spent to complete the job will require 4+ hours.
Additional Help
- 1 Star: Does not require any additional help to complete the job.
- 2 Stars: An extra hand would be nice to save your back but not required.
- 3 Stars: A helper to complete this job would make for a much smoother operation.
- 4 Stars: An extra hand is highly recommended and possibly necessary but the helper may or may not have mechanical experience.
- 5 Stars: A helper is highly recommended and likely necessary. We recommend getting help from someone with mechanical experience.
Full Article
Sometimes, no matter how well you take care of your Corvette, there are certain items that just wear out. The steering box on your Corvette is definitely one of those pieces. Often the steering box lubricant NEVER gets changed – oil breakdown as well as water intrusion can cause a real mess inside permanently wearing the internal components. Follow along as I take an in-depth look on what it takes to restore your Corvette’s steering box to its original condition. This job will take a couple of hours to complete and, of course, you’ll need to keep your basic tools handy. The first thing you will need to do is remove your Corvette’s steering box from the frame mount. Consult your manual for procedures.
Click on the images for expanded views – it’s much easier on the eyes.
Step 1
01: Remove the three bolts that attach the top cover, then remove the lock nut from the lash adjusting screw. Use a screwdriver to turn the lash-adjusting stud in order to back off the top cover of the Corvette steering box.
Step 2
02: Once you have the cover off, you can use a brass punch and hammer to drive the Pitman shaft out of the box.
Step 3
03: Use a punch to remove the lock ring. You do not have to remove the lock ring from the worm gear cover.
Step 4
04: You can now remove the worm gear cover. As you can see, this box was in very bad shape.
Step 5
05: Remove the worm gear assembly.
Step 6
06: Use a punch to remove the plug in the back of the box. Once you have removed the plug, you can drive the bearing race out of the housing. Note that you drive the race out from the outside of the housing.
Step 7
07: Using a large shaft, drive the Pitman arm shaft bushings out of the housing. Then clean the housing thoroughly.
Step 8
08: Moving back to the worm gear assembly, remove the two screws that attach the retaining clip to the worm gear.
Step 9
09: Now remove the metal tubes in the top of the worm gear and separate them. You can now clean these as well because you will be reusing them. Once the tubes are out, you can dump all the ball bearings out of the worm gear assembly. Note how the worm gear goes onto the worm gear shaft. You will need to reassemble this the same way. Now you need to clean all of the parts to remove the old grease.
Step 10
10: Now you can reassemble the steering box.. First, build the worm gear assembly. In Zip Corvette Parts kit (part# SC-638), we received 54 ball bearings to go into the worm gear assembly. Place a thick coat of steering box grease (part# SC-601) into one side of each of the metal tubes. Then fully line the tubes with as many ball bearings that will fit, then place the other half of the tube on top of them.
Step 11
11: Place the worm gear shaft into the worm gear, making sure that you have the angle of the teeth the same way as when you took it apart. Once the shaft is in, place the remaining bearings into the holes of the worm gear. Use a small screwdriver to push them down into the worm gear. Once you have installed all of the bearings, push the tubes into the worm gear and install the retaining strap.
Step 12
12: Moving to the box, use a race installer to install the new Pitman arm bushings into the box. They need to go in the same depth as the ones you removed. If you can’t remember, then the bushings need to be level with the edge of the box to allow room for the seal to be installed. To make them easier to install, try putting them in your freezer for about an hour.
Step 13
13: Now you can install the worm gear bearing races and the retaining cover. Make sure you drive them in until they stop. Then install the small seal that also goes into the cover.
Step 14
14: Apply a fair amount of grease onto the end of the worm gear shaft, then place the bearing on the shaft and grease the outside of the bearing. Install the worm gear assembly into the box, making sure that the bearing fully seats into the race. Then pack grease around the worm gear assembly in the housing. Place the second bearing on the worm gear shaft and install the cover. Tighten the cover enough to remove the play out of the worm gear shaft. You will need to center the worm gear assembly now. First make sure that you have almost four complete turns lock-to-lock (actually closer to 3 3/4 turns). Starting from the lock position, turn the shaft 1 3/4 to 2 turns. This will center the worm gear.
Step 15
15: Install the Pitman arm shaft. Use your finger to pull the worm gear up toward the top of the box, lightly coat the shaft with grease, and insert it into the box. The teeth on the Pitman arm shaft should mesh with the teeth on the worm gear. If the shaft does not push down into the worm gear teeth, you installed the worm gear backwards and will need to correct it. Once the Pitman arm shaft is installed, you can install the lash-adjusting stud with the shim on it. Use the screwdriver to reinstall the cover (don’t forget the gasket).
Step 16
16: Set the backlash and preload on the worm gear and Pitman shaft gear with an inch-pound torque wrench. The preload is set by tightening the worm gear cover until you reach the desired settings. You should have between 5- and 7-inch pounds of rolling torque for your preload.
Step 17
17: To set the backlash, turn the adjusting stud until you reach between 10- and 14-inch pounds of rolling torque when the box is centered. This means that as you rotate the box, it will take 7-inch pounds of torque until you start to get close to where the box is centered, then it should peak around 14-inch pounds and start to decrease as you turn the box past the center. Once you have the correct settings, install the lock nut on the adjusting stud and reinstall the steering box in your Corvette.
Steering Box Rebuild: 1963-1982 Corvette Steering Box Rebuild
Source: Zip Corvette Parts
8067 Fast Lane | Mechanicsville, VA 23111 | (800) 962-9632
