Overview
Section: C6 ExhaustWhat's Easy:
Corsa exhaust systems fit to the Corvette and bolt in nicely.What's Hard:
Getting the exhaust tips to line up perfectly can be tricky.Bottom Line
Corsa always seems to produce a quality product, especially for the C6 Corvette. A new Corsa exhaust is well worth the money, time, and effort when it is all said and done.
Ratings are based on overall difficulty level of the procedure.
- Articles that receive fewer stars will require less mechanical ability, basic tools, shorter time and little or no additional help to complete.
- Articles that receive more stars are for more confident mechanics who have a larger collection of tools. These will most likely require additional help and take longer to complete.
Our Complete Rating System
Experience:
- 1 Star: No mechanical experience is necessary.
- 2 Stars: Very limited mechanical experience is required.
- 3 Stars: Mechanical experience is helpful but not necessary. Possibly a good first project for those with more confidence.
- 4 Stars: Mechanical experience is a big plus. These jobs are not recommended for first time DIY projects.
- 5 Stars: Mechanical experience is a must. These jobs are only for experienced mechanics and most should opt to have these professionally completed.
Tools Required
- 1 Star: Does not require any tools to complete the job.
- 2 Stars: Common tools required to complete the job.
- 3 Stars: Common tools required. More advanced tools might help complete the job easier.
- 4 Stars: Common tools, more advanced tools and possibly special tools are required to complete the job.
- 5 Stars: A professional tool collection with advanced and special tools are required to complete the job.
Completion Time
- 0-1 Star: Time spent to complete the job will not exceed 1-hour.
- 2 Stars: Time spent to complete the job will likely fall within 1-2 hours.
- 3 Stars: Time spent to complete the job will likely fall within 2-3 hours.
- 4 Stars: Time spent to complete the job will likely fall within 3-4 hours.
- 5 Stars: Time spent to complete the job will require 4+ hours.
Additional Help
- 1 Star: Does not require any additional help to complete the job.
- 2 Stars: An extra hand would be nice to save your back but not required.
- 3 Stars: A helper to complete this job would make for a much smoother operation.
- 4 Stars: An extra hand is highly recommended and possibly necessary but the helper may or may not have mechanical experience.
- 5 Stars: A helper is highly recommended and likely necessary. We recommend getting help from someone with mechanical experience.
Full Article
Chevrolet did a good job on the exhaust system for a stock C6 Corvette, but like with all Corvettes of the past, it has left something to be desired. The release of the Corsa Sport Exhaust System is just what every Corvette owner needs. Let’s get it installed at Zip Corvette Parts, 8067 Fast Lane, Mechanicsville, VA 23111, 1-800-692-9632. Follow along for the complete step-by-step instructions for installing a C6 Corvette Corsa Sport Exhaust System.
Click on the images for expanded views – it’s much easier on the eyes.
Step 1

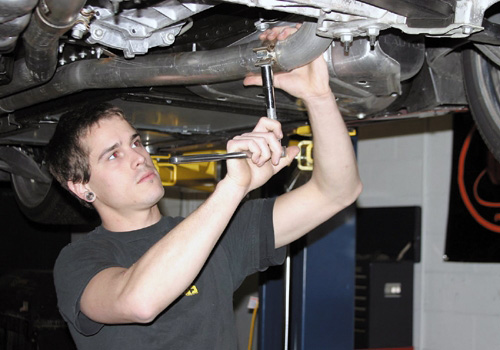

01: The first thing we will need to do is loosen the accu-seal clamp that holds the stock exhaust system the factory H-pipe. This is a C6 Corvette Corsa Sport exhaust system so we will retain the factory H-pipe, if it were a touring system the factory H-pipe would be replaced.
Step 2

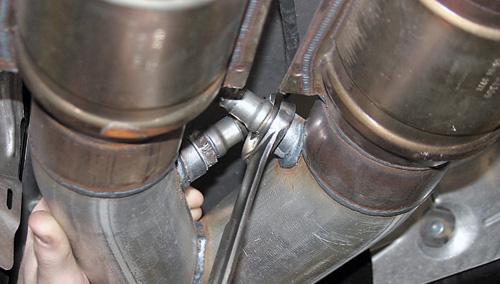

02: Now it’s time to remove the rear O2 sensors. If you are doing this at home and the car is on jack stands, you will not need to remove them. There is enough wire so that you could set the h-pipe on the ground without disconnecting them. If the car is on a lift, you will need to remove them. You can leave them plugged in and just unscrew them from the pipe.
Step 3A
Step 3B

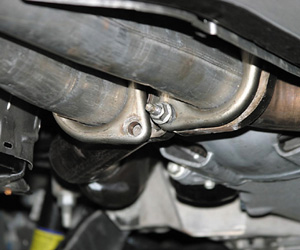

03: Once you have the rear clamp loose, you can start removing the bolts from the front of the H-pipe. Now, you are probably asking yourself; “if we are re-using this, why are we going to take it off?” Well, unlike the C5, the rear mufflers slip on and there is no room for them to go backwards once they are bolted in. We must slip the H-pipe off the muffler instead, so we have to remove this before we start on the mufflers.
Step 4
04: Take the nut driver and remove the power terminals so that you can remove the clock movement from the housing. Make a note as to how the terminals are aligned. When you re-assemble the clock, the terminals will have to be aligned as they were originally to accept the clock power source plug.
Step 5A
Step 5B

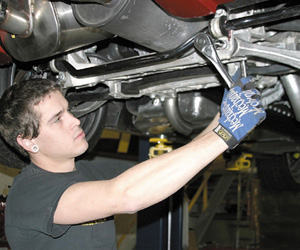

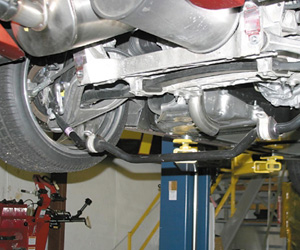

05: Before we start unbolting the mufflers, the sway bar needs to be moved out of the way. Remove the top bolts and the nuts on the bottom. Once the stud on the bottom is removed, you push the lower control arm bolt through until the sway bar bracket will come off. The bar just lowers down out of the way.
Step 6A
Step 6B
Step 6C
06: The Corvette muffler bracket bolts are difficult to see but fairly easy to get to. Once these are removed, you will be able to pull the muffler assembly out. Don’t discard them; you will need to reuse the brackets on the new Corsa mufflers.
Step 7A
Step 7B

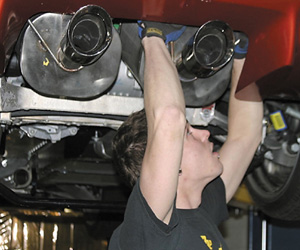

07: The new Corsa sport mufflers come in two parts: the muffler and the over axle pipe. You will need to connect the two and install the clamp (leave it loose) and then install the assembly. Once you have it in place, go ahead and bolt the assembly. You can now reinstall the h-pipe. Since the Corsa mufflers come in two pieces, it allows you to bolt the h-pipe to the converters before sliding the mufflers over it.
Step 8

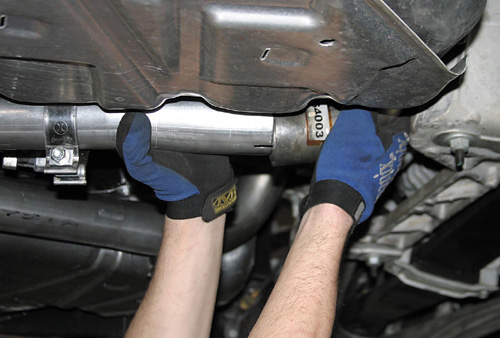

08: Now you can slip the Corsa over axel pipe over the factory H-pipe.
Step 9A
Step 9B

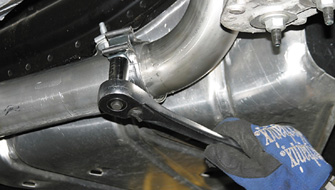

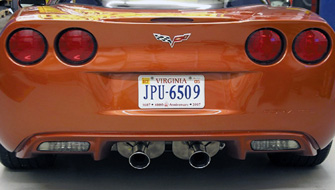

09: Once the pipes are all fitted together you can bolt the h-pipe back up to the bracket forward of the transmission. Once these are tightened you can slide the clamps over. Before you tighten down the clamps, you are going to need to align the tips of the exhaust and tighten the clamp on the muffler/axle pipe. Once it is tight and the tips are aligned, you can go ahead and tighten the last clamp at the h-pipe. This is the last step in the process and now you can enjoy the deep sounds of your Corvette’s Corsa Exhaust System.
